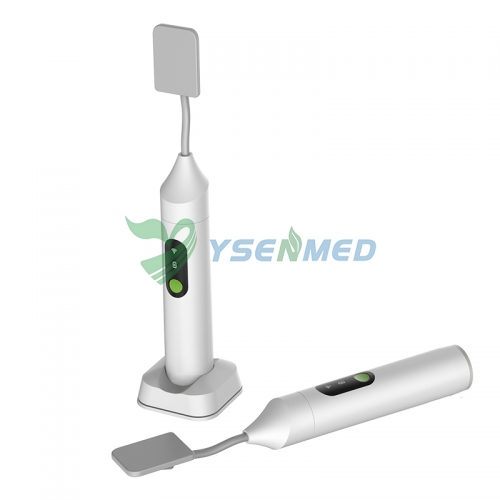

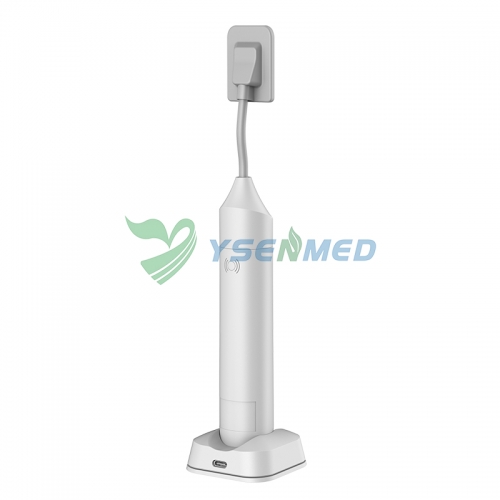

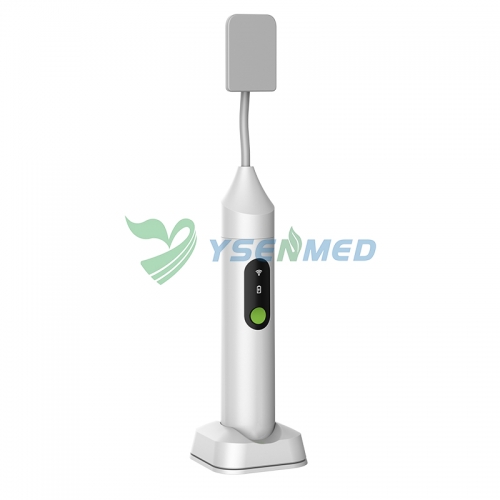

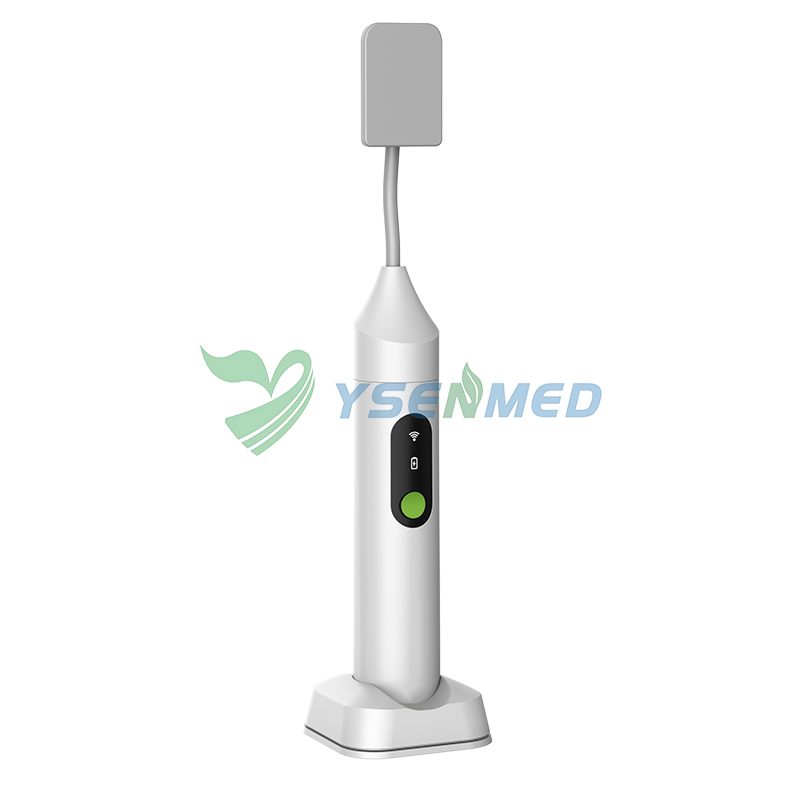

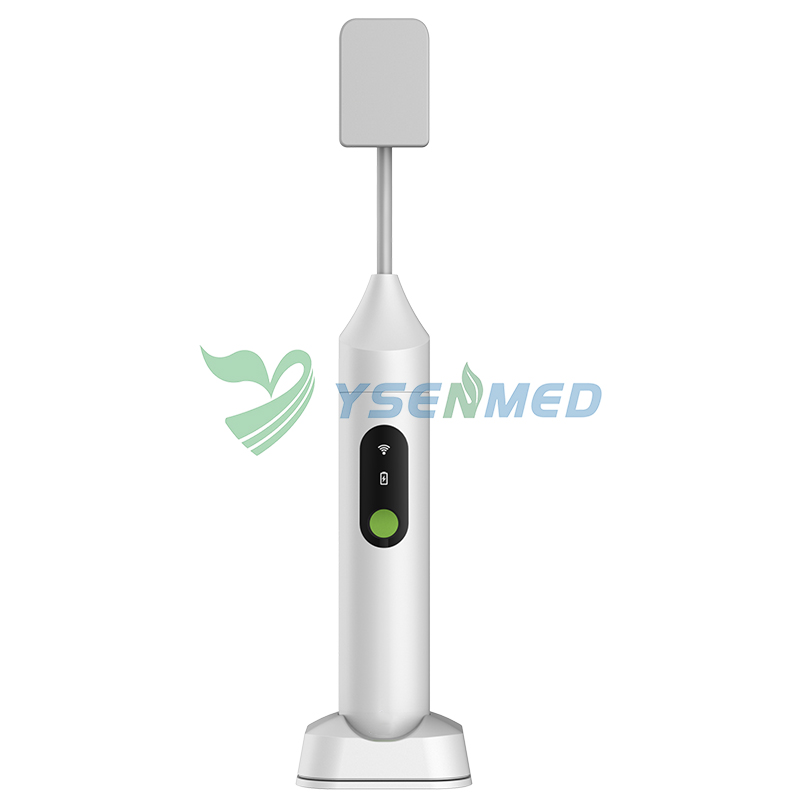

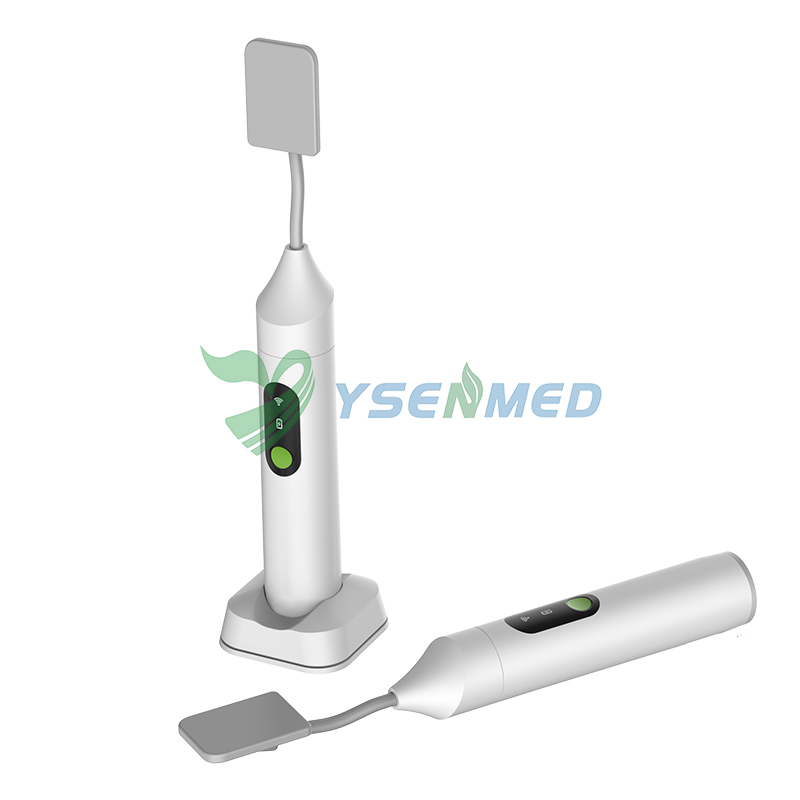

YSRVG-2XW Digital Intra-oral Sensors

Item No.: YSRVG-2XW
High-res CMOS imaging with 5G WiFi & AED trigger. Slim, durable design for superior patient comfort
  • BrandYSENMED
  • Model numberYSRVG-2XW
  • Warranty1 Year
  • CustomizedOEM
  • Lead time7 Working Days
  • PackageStandard Package
  • Description
    Features

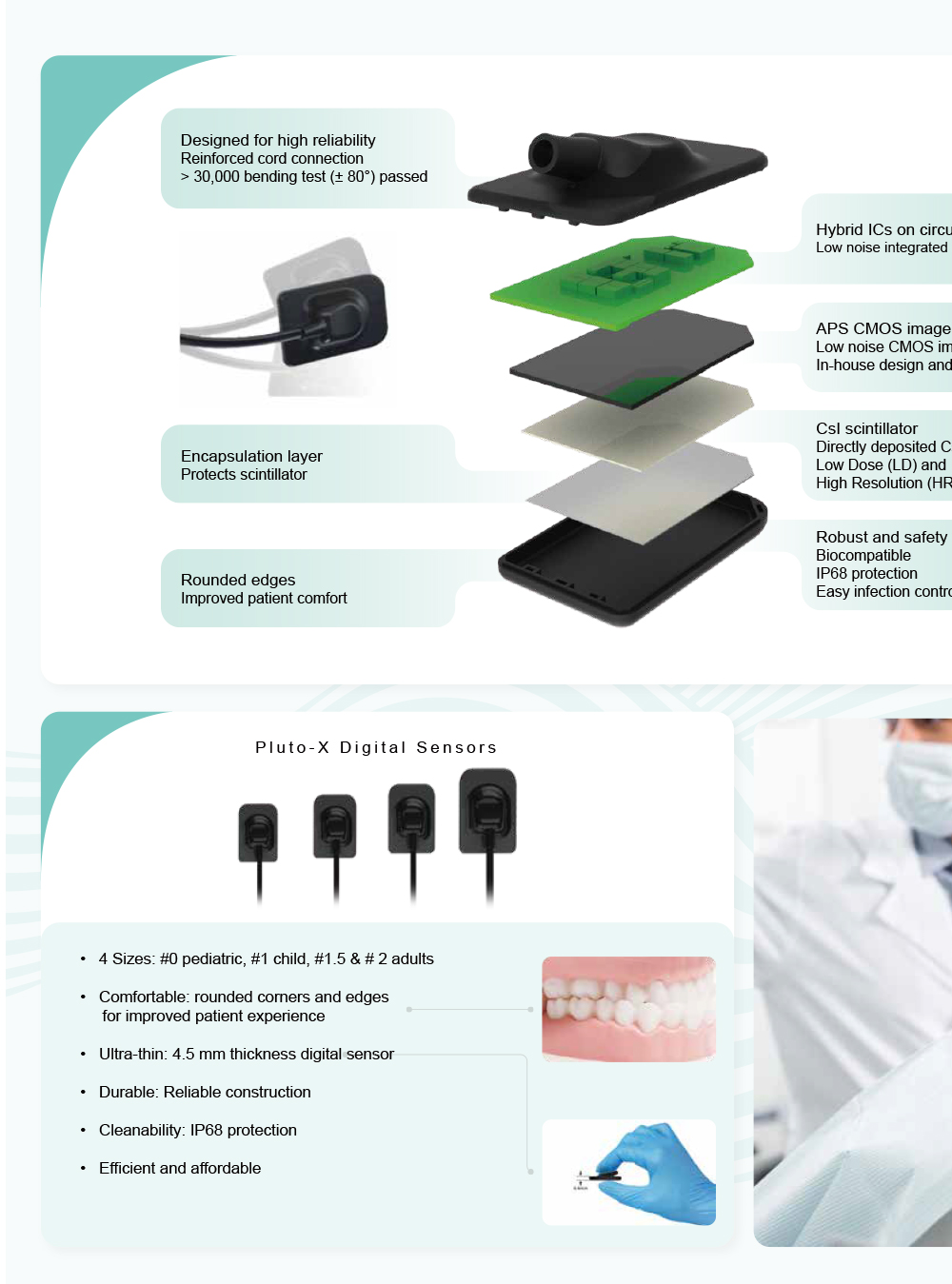

    CMOS detector technology
    Low dose clinical imaging
    High resolution
    Wide dynamic range
    YSRVG-2XW suitable for adults intra-oral imaging
    Slim, rounded corner and smooth edge
    Wireless data transmission
    AED trigger, fast and easy workflow
    Durable material and components
    Friendly software user interface

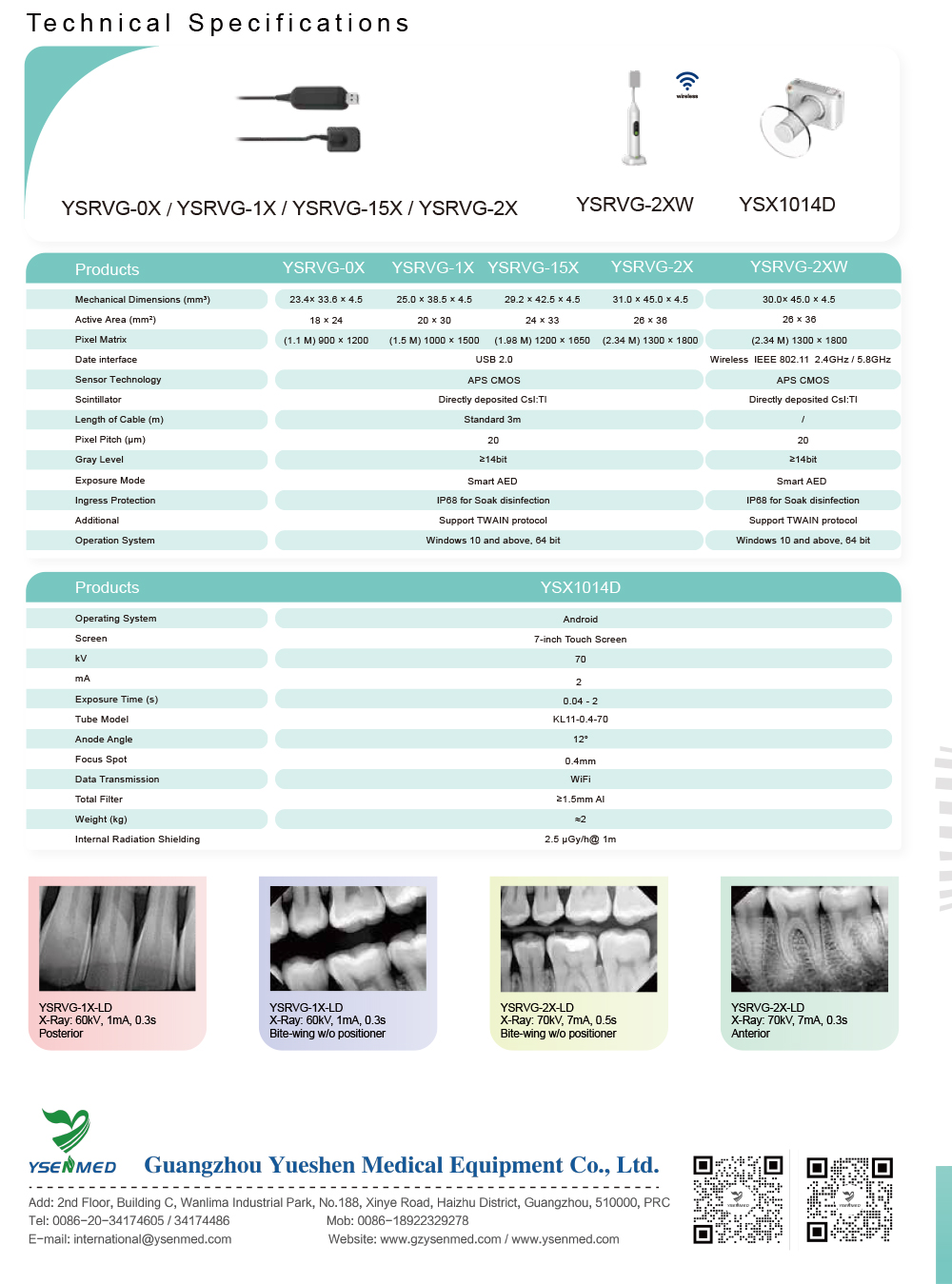

    Technical Parameters
    YSRVG-2XW
    Detector Technology CMOS Dimensions (mm3) 30.4 × 41.9 × 4.5
    Scintillator Direectly deposited CsI:TI Length of cable (m) /
    Pixel Pitch (μm) 20 Housing material Kevlar
    Active Area (mm²) 26x 36 X-Ray shielding Pb-shield behind active area
    AD Conversion (bit) 14 Radiation dose ≥ 50Gy
    Trigger Mode AED Ingress Protection IP68
    X-ray Exposure Window (s) Max. 5s Operating Temperature (℃) 10 ~ 40
    X-ray Energy Range (kV) 55~100kV Storage & Transport Temperature with Package (℃)  -10~60
    Data Interface 5G Wifi Operating Humidity (% RH)  20 ~ 90 (Non-Condensing)
    Power Dissipation (W) ≤0.8W Storage & Transport Humidity with Package (% RH)  10 ~ 95 (Non-Condensing)
