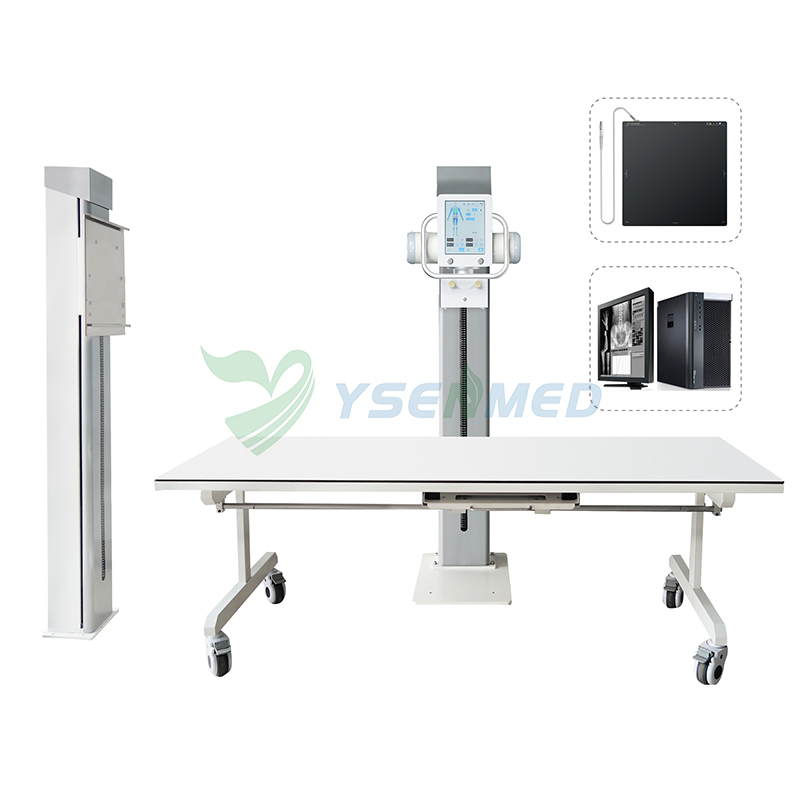

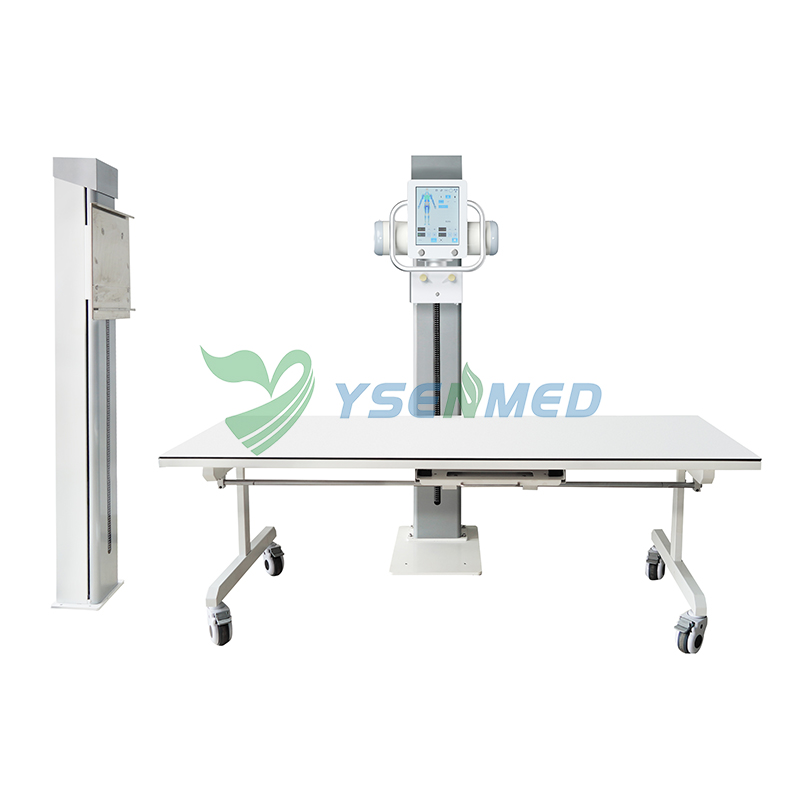

YSENMED 80kW 1000mA Economy Digital X-ray System YSF80DR-B1

Item No.: YSF80DR-B1
YSF80DR-B1 80KW Digital Radiography System. Our most powerful DR X-ray for superior clarity and high throughput. Ideal for demanding hospital environments and trauma centers.
  • BrandYSENMED
  • Model numberYSF80DR-B1
  • Warranty1 YEAR
  • CustomizedAvailable
  • Lead time7-10 Days
  • PackageExport Carton
  • Description
    Introduction:
    YSENMED digital radiography x-ray system is a general purpose system which applies to full-body parts radiography. The humanized and user-friendly design makes it easy to operate.With this DR system, YSENMED is committed to making digitalized radiography more accessible and affordable for clinicsand hospitals around the world.

    Product Features:
    10.4” color TFT touch screen
    Simple floor-mounted tube column structure saves space
    Support radiography of various positioning
    Mobile radiography table with brakes
    Easy installation & operation


    Specifications:
    Parameter:
    YSF80DR-B1

    Max.KW:
    80KW

    Power Supply:
    50Hz/60Hz,20/32/50kW(220V/380V available),65kW&80kW(only 380V)

    mA:
    10~1000

    mAS:
    0.4~1000

    KV:
    40~150kV,stepping by 1kV

    Exposure Time:
    0.001~10s adjustable: stepping by 1ms

    Focus:
    Dual focus:0.6*0.6mm/1.2*1.2mm

    Anode Speed & Heat Content:
    3000rpm/350kHU

    Max. Working Frequency:
    300kHz±20%

    Tube Movement:
    Up & down lift, left & right rotation

    Column:
    Stationary

    Radiography Table:
    2000*730*695mm(mobile)

    Bucky Stand:
    Manual up & down

    Detector Size:
    17*17 inch

    Pixel Resolution:
    3072*3072

    Pixel Pitch:
    139um

    A/D Conversion:
    16bits

    Spatial Resolution:
    3.61p/mm

    Size:
    460*460*15mm

    Interface:
    Wired (Wireless is optional)

    Software:
    Professional medical software with multi-languages available

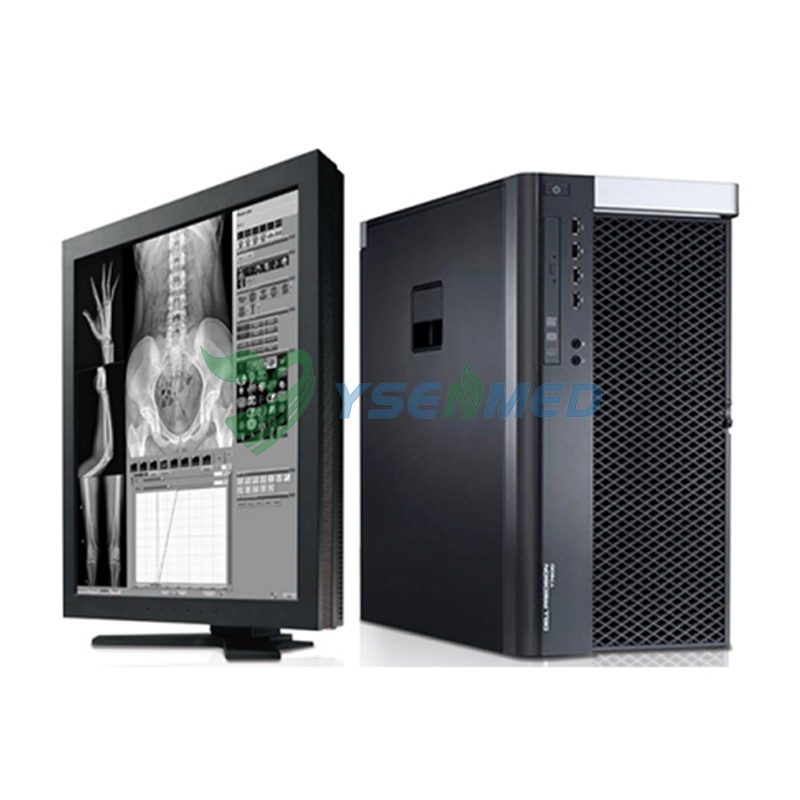

    Workstation:
    Desktop or laptop computer for choice
