Veterinary Imaging Explained: Differences Between X-Ray (DR), CT, Ultrasound, and MRI

Veterinary diagnostic imaging has become one of the most important tools in modern small animal practice. When a pet presents with symptoms that are difficult to evaluate through physical examination alone, veterinarians rely on technologies such as X-ray (Digital Radiography, DR), Computed Tomography (CT), Ultrasound (B-mode Sonography), and Magnetic Resonance Imaging (MRI). Each modality uses a different physical principle to provide non-invasive insights into the internal structures of the animal’s body. Understanding their differences and clinical applications is essential for pet owners and veterinary clinics alike.

At Ysenmed (Guangzhou Yuesen Medical Equipment Co., Ltd.), we specialize in veterinary imaging solutions, providing high-quality diagnostic devices to clinics, hospitals, and universities worldwide. Learn more at www.ysenmedical.com.

The Role of Veterinary Imaging

Modern veterinary medicine has evolved far beyond basic examinations. Imaging tools help identify diseases earlier, guide treatment decisions, and improve outcomes. The choice of imaging modality depends on the affected organ system, the suspected disease, and the required level of detail. Below, we explore the four major imaging technologies in veterinary medicine.

1. Veterinary X-ray (Digital Radiography)

Principles of X-ray

X-rays use ionizing radiation to capture two-dimensional images of internal structures. In veterinary medicine, DR (Digital Radiography) systems are the most common, providing fast results with high image clarity. Dense tissues like bone absorb more radiation and appear white, while soft tissues allow more radiation to pass and appear darker.

Clinical Applications

• Skeletal evaluation: fractures, bone deformities, arthritis.

• Thoracic imaging: preliminary assessment of the heart, lungs, and ribs.

• Abdominal imaging: evaluation of foreign bodies, bladder stones, and organ enlargement.

Advantages

• Fast and widely available.

• Relatively low cost compared to CT or MRI.

• Non-invasive and suitable for most veterinary clinics.

Limitations

• Limited detail in soft tissue structures.

• Overlapping organs can make interpretation difficult.

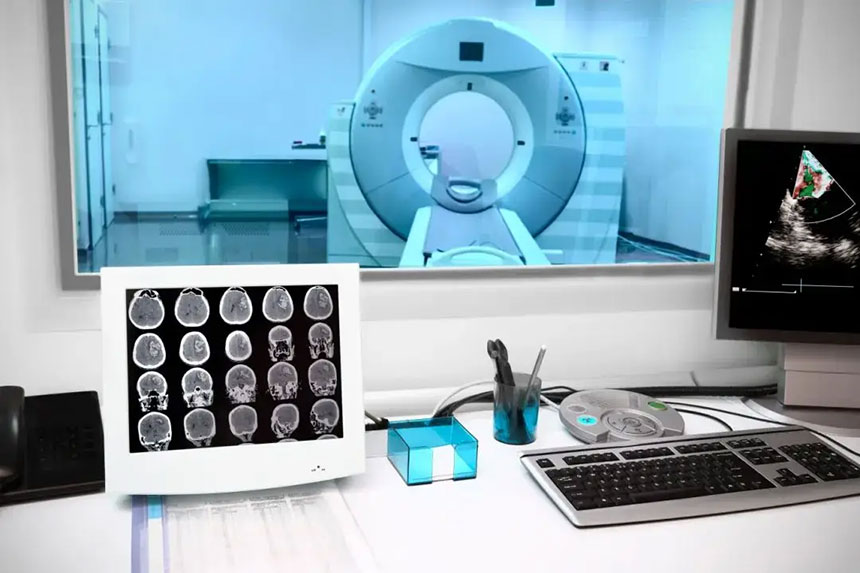

2. Veterinary CT (Computed Tomography)

Principles of CT

CT is essentially an advanced form of X-ray imaging. Instead of capturing a flat picture, the CT scanner rotates around the patient, taking multiple images from different angles. These are processed by a computer to create cross-sectional (slice) images, allowing veterinarians to see detailed anatomy layer by layer.

Clinical Applications

• Neurology: brain hemorrhages, trauma, tumors.

• Orthopedics: complex fractures, bone tumors, spinal disorders.

• Thoracic imaging: lung lesions, mediastinal masses, early-stage cancer detection.

• Abdominal imaging: tumors of the liver, kidneys, adrenal glands, and pancreas.

Advantages

• Excellent for visualizing complex anatomy.

• Provides 3D reconstruction for surgical planning.

• Higher sensitivity compared to standard X-ray.

Limitations

• Higher cost and requires sedation or anesthesia.

• Exposure to radiation (although minimized with modern scanners).

3. Veterinary Ultrasound (Sonography)

Principles of Ultrasound

Ultrasound imaging relies on high-frequency sound waves that reflect off tissues and organs. The echoes are translated into real-time images, making it an ideal tool for evaluating soft tissues.

Clinical Applications

• Cardiology: echocardiography to evaluate heart chambers, valves, and blood flow.

• Abdominal imaging: liver, spleen, pancreas, kidneys, bladder, and reproductive organs.

• Pregnancy diagnosis: fetal viability and monitoring.

Advantages

• Safe and non-invasive (no radiation exposure).

• Real-time imaging allows dynamic observation.

• Portable and relatively affordable.

Limitations

• Limited by operator skill and patient cooperation.

• Gas-filled organs (lungs, intestines) reduce image quality.

4. Veterinary MRI (Magnetic Resonance Imaging)

Principles of MRI

MRI uses strong magnetic fields and radio waves to align hydrogen atoms in the body. When the magnetic field is altered, these atoms release energy that is captured to create highly detailed images of soft tissues.

Clinical Applications

• Neurology: brain and spinal cord disorders, intervertebral disc disease, tumors.

• Cardiology: evaluation of heart muscle diseases and perfusion.

• Orthopedics: soft tissue injuries, ligaments, and cartilage.

Advantages

• Superior soft tissue contrast compared to CT and X-ray.

• No radiation exposure.

• Provides functional as well as anatomical information.

Limitations

• Expensive and less widely available.

• Requires general anesthesia for small animals.

Choosing the Right Imaging Modality

The decision on which imaging method to use depends on the organ system under investigation and the suspected disease:

• Bones and fractures → Start with X-ray, escalate to CT if complex.

• Spinal cord or brain → CT for hemorrhage, MRI for detailed nerve assessment.

• Thoracic disease → X-ray for initial screening, CT for detailed evaluation.

• Cardiac evaluation → Ultrasound (echocardiography) is first choice, MRI for detailed assessment.

• Abdominal organs → Ultrasound for initial screening, CT/MRI for further evaluation.

Comparative Summary Table

FAQs (Frequently Asked Questions)

Q1: Is X-ray safe for pets?
Yes. Modern digital radiography uses very low doses of radiation. For small animals, the exposure is minimal and considered safe.

Q2: When should I choose CT over X-ray?
CT provides far greater detail, especially in complex cases such as bone fractures, brain injuries, or early detection of tumors.

Q3: Can ultrasound replace X-ray or CT?
Not entirely. Ultrasound is excellent for soft tissues but cannot penetrate bone or gas. It complements other modalities.

Q4: Why is MRI less common in veterinary clinics?
MRI machines are expensive and require anesthesia for pets. They are usually found in referral centers or universities.

Q5: Does Ysenmed provide veterinary imaging equipment?
Yes. Ysenmed offers a full range of veterinary diagnostic devices including X-ray systems, CT scanners, ultrasound machines, and MRI solutions. Learn more at www.ysenmedical.com.

Why Choose Ysenmed for Veterinary Imaging Equipment?

At Ysenmed, we understand the growing demand for advanced veterinary imaging. Our product line includes:

• Veterinary Digital Radiography (DR) systems

• Veterinary CT scanners

• Portable and cart-based ultrasound machines

• High-field and low-field MRI solutions

Our Advantages

• Over 20 years of experience in medical equipment manufacturing.

• Exported to more than 100 countries worldwide.

• OEM/ODM customization services available.

• Comprehensive technical support and training.

By choosing Ysenmed, veterinary clinics can equip themselves with reliable, cutting-edge diagnostic tools that improve patient care and client satisfaction.

Conclusion

Veterinary imaging plays a vital role in modern animal healthcare. While X-ray, CT, ultrasound, and MRI each have their own strengths and limitations, together they form a complete diagnostic arsenal for veterinarians. As pet owners demand higher quality care, clinics equipped with advanced imaging systems can deliver accurate, fast, and effective diagnoses.

For clinics seeking high-quality veterinary imaging equipment, Ysenmed is your trusted partner. Visit us at www.ysenmedical.com to explore our complete line of veterinary diagnostic imaging solutions.
